Philips
313A and Mullard MAS95

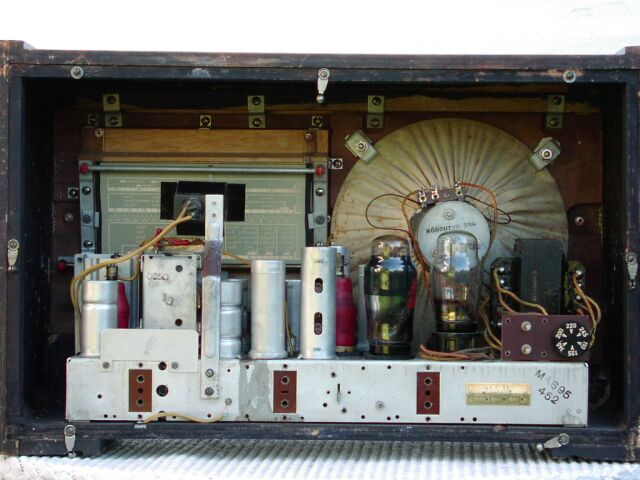

Mullard MAS95 interior

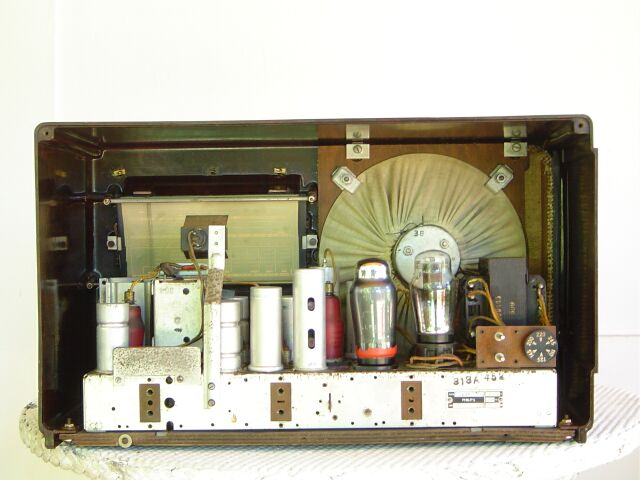

Philips 313A interior
General
features
|
Radio type |
Mains powered table radio |
|
Circuit type |
Superheterodyne, 452kHz IF with
delayed AVC |
|
Dimensions |
530x335x240mm, 12kg |
|
Cabinet (Mullard MAS95) |
3-tone lacquer, wood, cloth
grille, printed glass dial, metal ornaments |
|
Cabinet (Philips 313A) |
Bakelite, cloth grille, printed
glass dial, metal ornaments |
|
Loudspeaker |
200mm, moving coil, permanent
magnet |
|
Main controls |
Tone, Volume/on-off, tuning and
waveband switch |
|
Extra controls |
Radio/PU switch |
|
Connections |
Antenna, ground, PU, external
loudspeaker |
|
Power |
AC, 110-245V in 6 steps, 50W |
Wave bands
|
MW |
165-560m |
|
MW local |
165-560m |
|
SW |
45-165m |
|
SW |
13.5-45m |
Circuits and Tubes
|
RF preamplifier |
EF8 low noise remote cutoff
pentode |
|
Oscillator and mixer |
ECH3 triode-hexode |
|
IF amplifier and detector |
EBF2 duodiode- remote cutoff
pentode |
|
Audio power amplifier |
EL3 9W pentode |
|
Rectifier |
AZ1 dual power diode |
