Pilot
model G-576B, 1937
General
features
|
Radio type |
AC powered table radio |
|
Circuit type |
Superheterodyne, 460kHz IF with
delayed AVC |
|
Dimensions |
|
|
Cabinet |
Wood with Bakelite bezel, cloth
grille, plastic dial behind glass |
|
Loudspeaker |
200 mm, moving coil, electromagnet
type |
|
Main controls |
Volume, tone/on-off, tuning,
waveband switch |
|
Extra controls |
none |
|
Connections |
Antenna, ground |
|
Power |
AC, 110 or 220V |
Wave bands
|
MW |
|
|
SW |
|
|
SW |
|
|
SW |
|

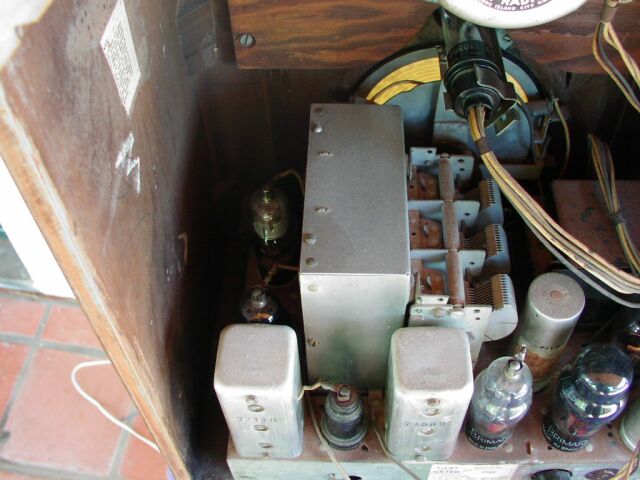

Circuits
and Tubes
|
RF amplifier |
6K7 remote cutoff pentode |
|
Oscillator and mixer |
6A8 heptode |
|
IF amplifier |
6K7 remote cutoff pentode |
|
Detector, AVC and audio amplifier |
6Q7 duodiode-triode |
|
Audio power amplifier |
6F6 power pentode |
|
Rectifier |
5Y3G directly heated dual power
diode |
|
Tuning indicator |
6U5 fluorescent tube- triode |
