Philips
model 206A
General
features
|
Radio type |
Mains powered table radio |
|
Circuit type |
Superheterodyne, 452kHz IF with
delayed AVC |
|
Dimensions |
250 x 400 x 210mm, 6.35kg |
|
Cabinet |
Bakelite, cloth grille, printed
glass dial |
|
Loudspeaker |
165mm, moving coil, permanent
magnet, type 9648 |
|
Main controls |
Volume/on-off, tuning, waveband
switch |
|
Connections |
Antenna, ground |
|
Power |
AC, 110-245V in 6 steps, 45W |
|
Country of origin |
France |
Wave bands
|
LW |
708-2000m |
|
MW |
185-585m |
|
SW |
16.7-51m |

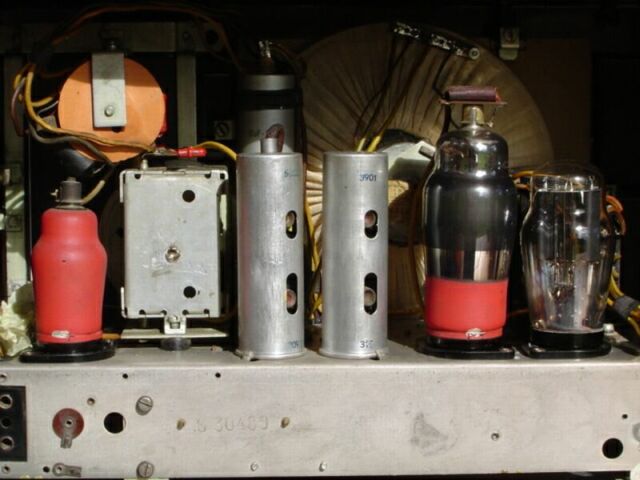

Circuits
and Tubes
|
Oscillator and mixer |
ECH3 triode-hexode |
|
IF amplifier |
EF9 remote cutoff pentode |
|
Detector and audio power amplifier
|
EBL1 duodiode-power pentode |
|
Rectifier |
AZ1 directly heated dual power
diode |
|
Tuning indicator |
EM1 triode-fluorescent tube |
