Philips model BX485V

Back to BX485V main page

Back to main radio page





General features

Circuit type

Superheterodyne, 452kHz IF with delayed AVC

Dimensions

450x335x240mm, 12kg

Cabinet

Bakelite, cloth grille behind plastic dial.

Loudspeaker

200mm, moving coil, permanent magnet

Main controls

DC on-of, illumination on-off, tone, volume, tuning, waveband switch

Connections

Antenna, ground, PU, external loudspeaker

Power

6V DC


Wave bands

LW

715-2000m

MW

185-580m

SW

49-150m

SW

32-50.5m

SW

21-32m

SW

16.5-26m

SW

11-17.5m


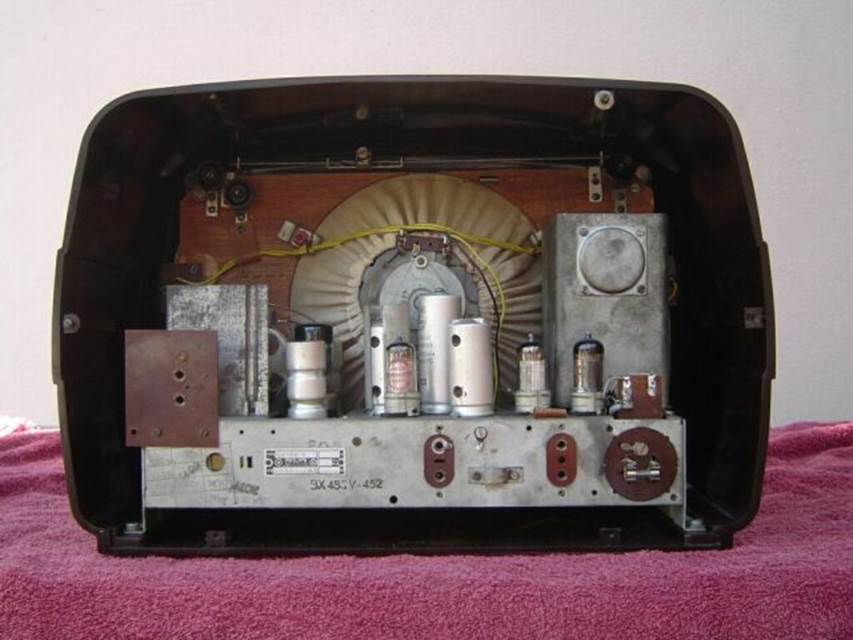

Circuits and Tubes

Oscillator and mixer

ECH21 triode-heptode

IF amplifier and AVC

EAF42 diode- remote cutoff pentode

Audio amplifier and detector

EAF42 diode- remote cutoff pentode

Audio power amplifier

EL42 5W economy pentode

Rectifier

Synchronous chopper
